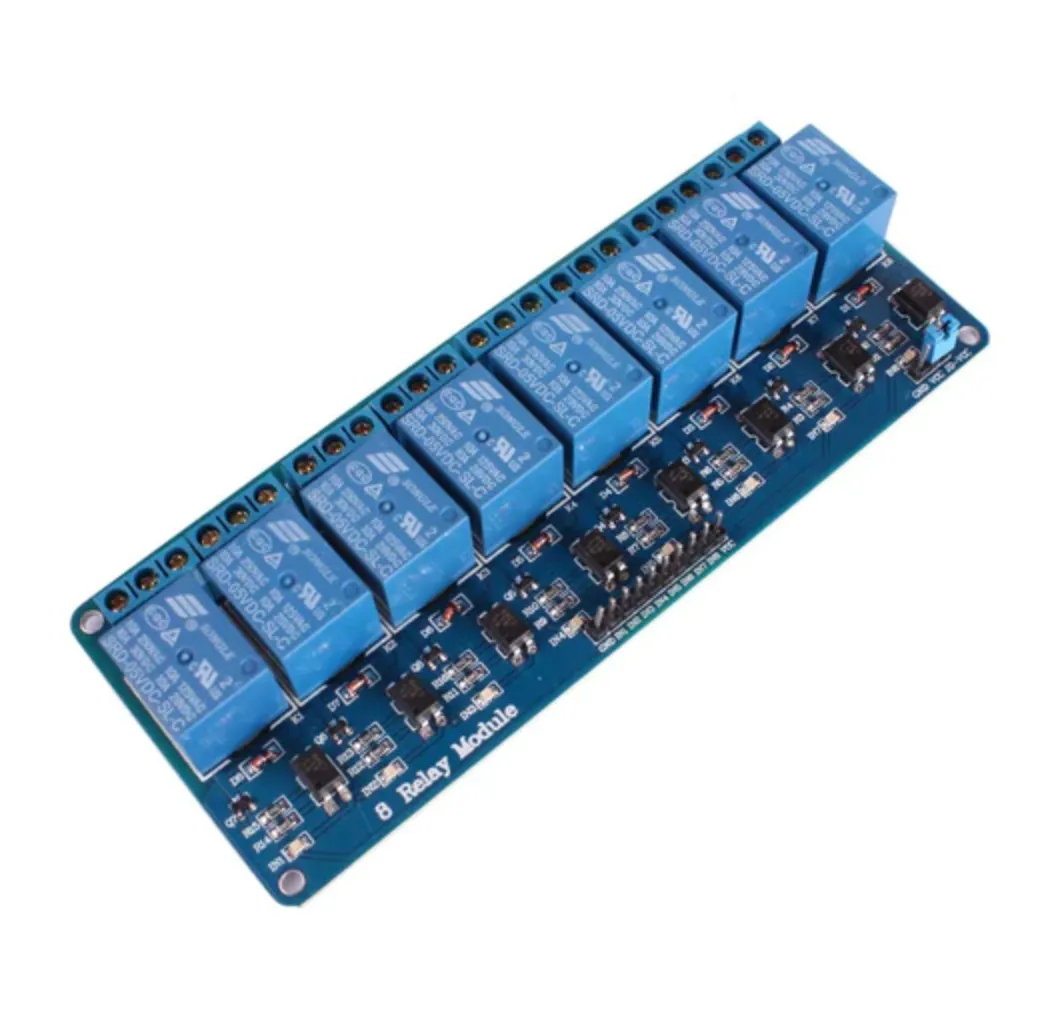

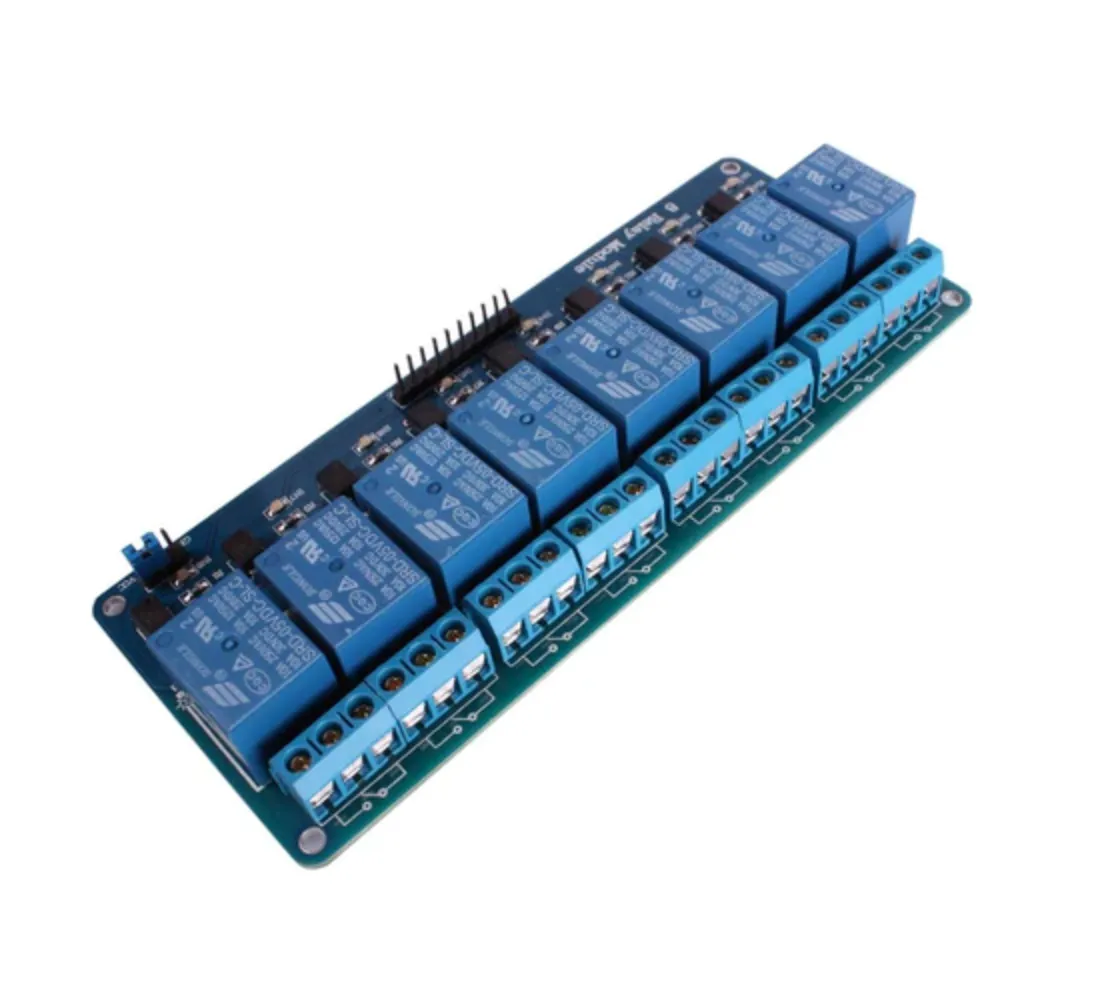

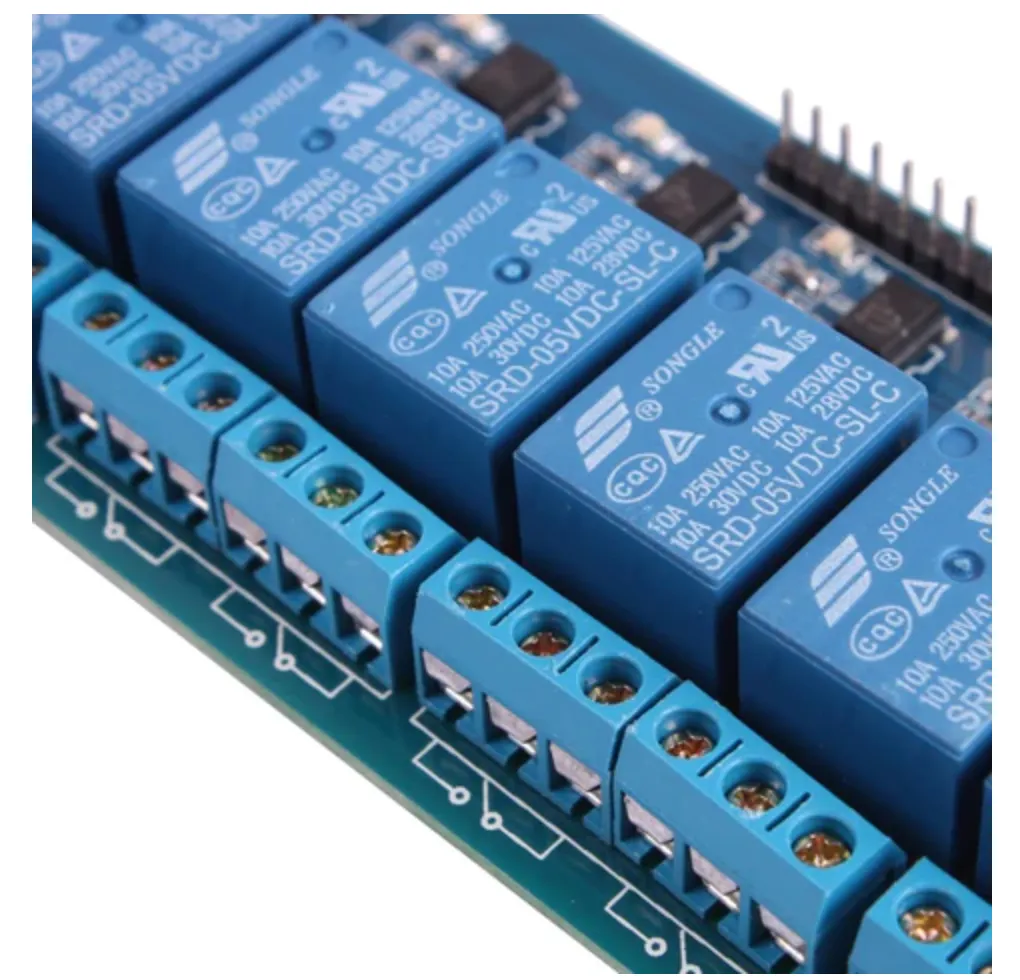

The 8-Channel Relay Module gives you the power to control high voltages and currents using a 5V signal coming from a microcontroller. You can now turn on and off lamps, fans, solenoids, and other small appliances that run on up to 250 VAC or 30 DC power. You can control up to 8 different appliances with this module.

• AC current maximum: 10 A
• AC voltage maximum: 250 V
• DC current maximum: 10 A
• DC voltage maximum: 30 V
• Dimensions(approx.): 13.4 × 5.3 cm
• Driver Current for each relay: 50-60mA
• Indication LED's for Relay output status
